4K HDMI USB LAN 60FPS 28X Zoom Integrated Auto focus Industry Microscope Camera

4K HDMI USB LAN 60FPS 28X Zoom Integrated Auto focus Industry Microscope Camera

GBP 629.00
Condition: New
Category: Electronics
View on eBay Back to Home
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping



















































































4K @60FPS Video Electric Zoom

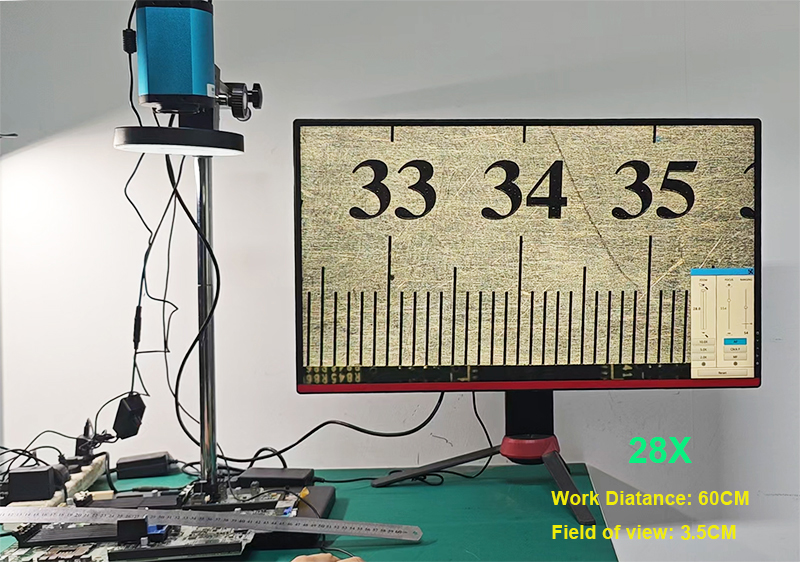

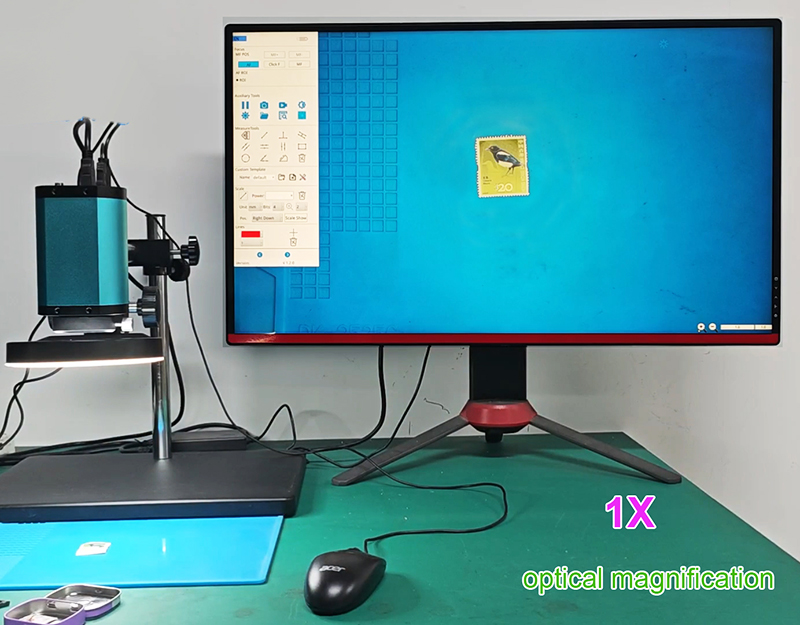

1X-28X Optical

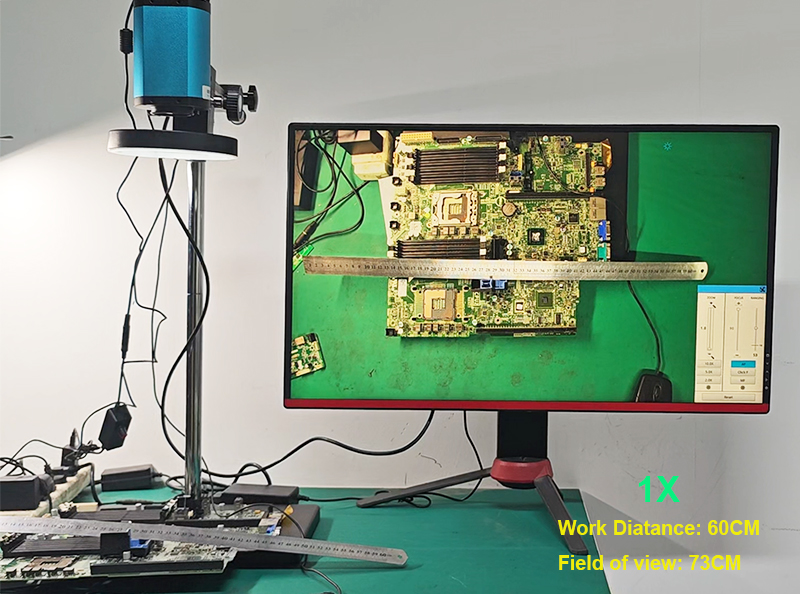

Working distance: 10CM - infinity

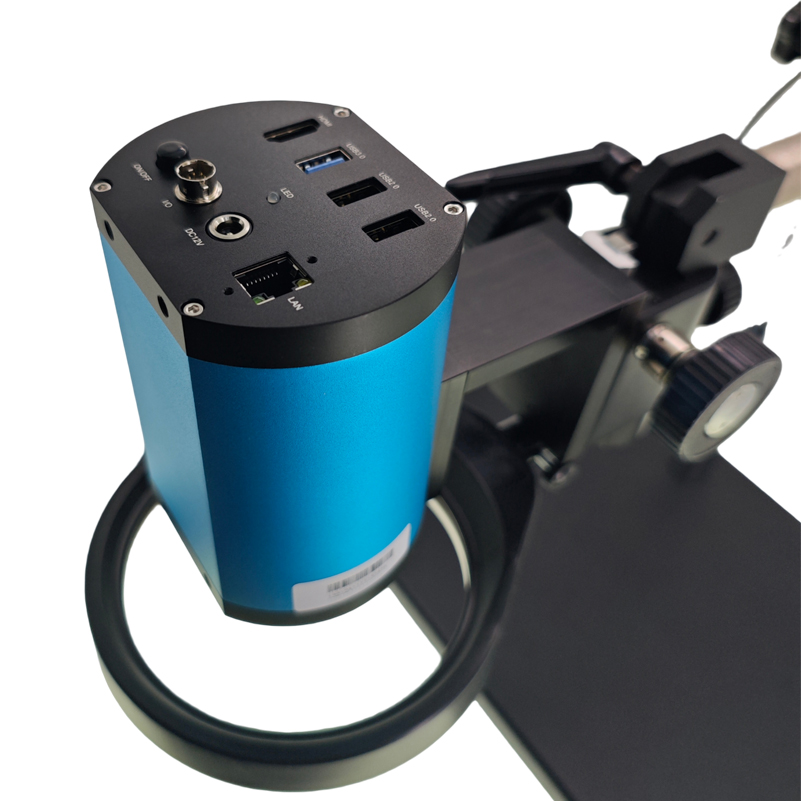

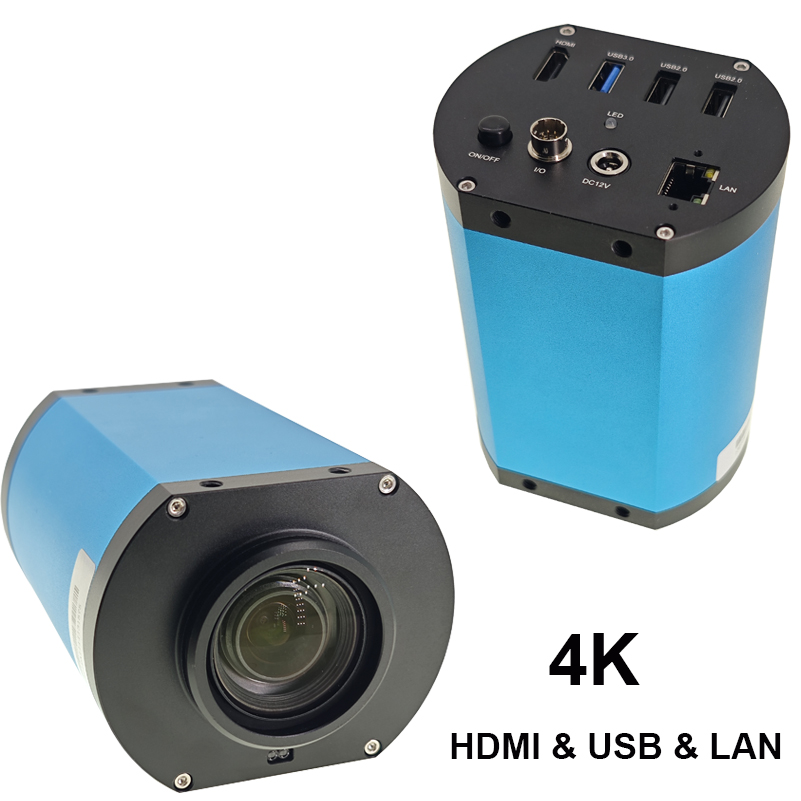

HDMI / USB / LAN Autofocus Industrial Microscope Camera

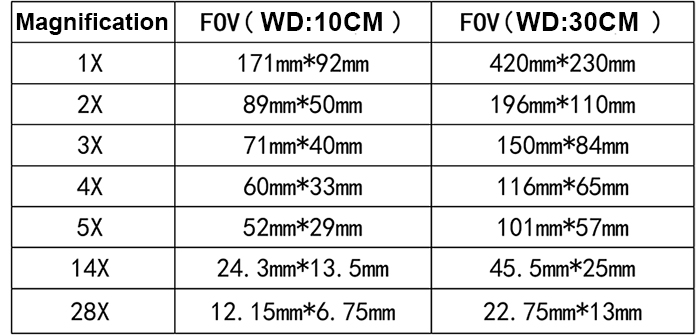

Optics Lens Large Field Of View

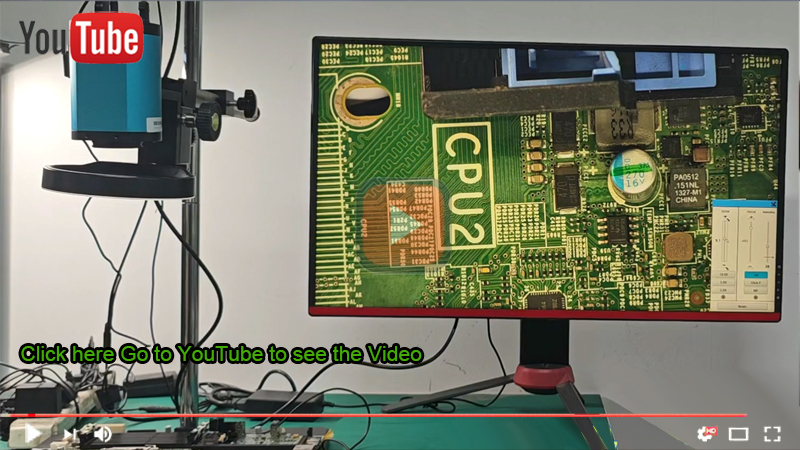

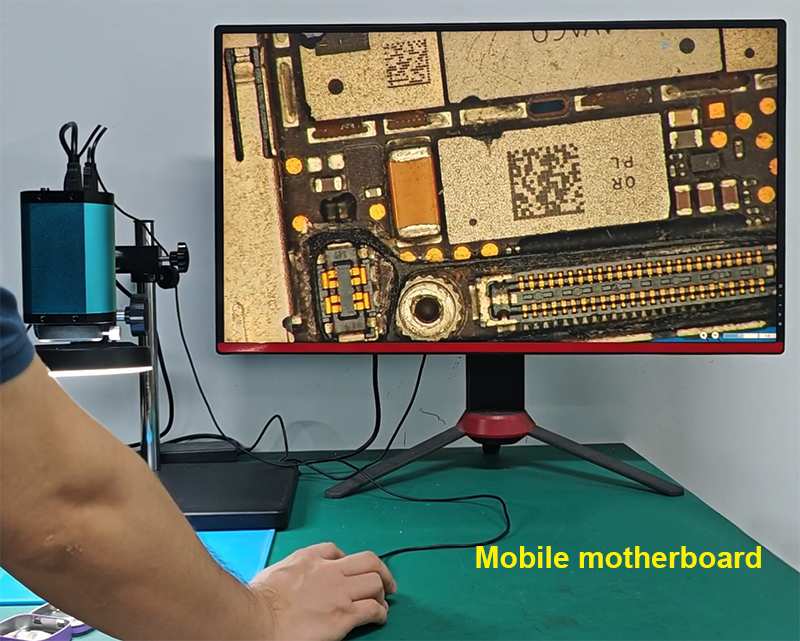

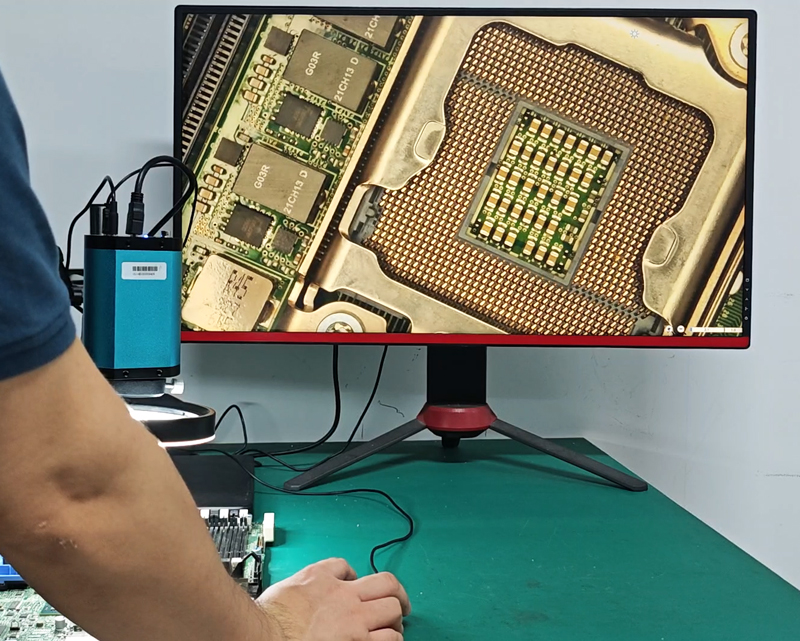

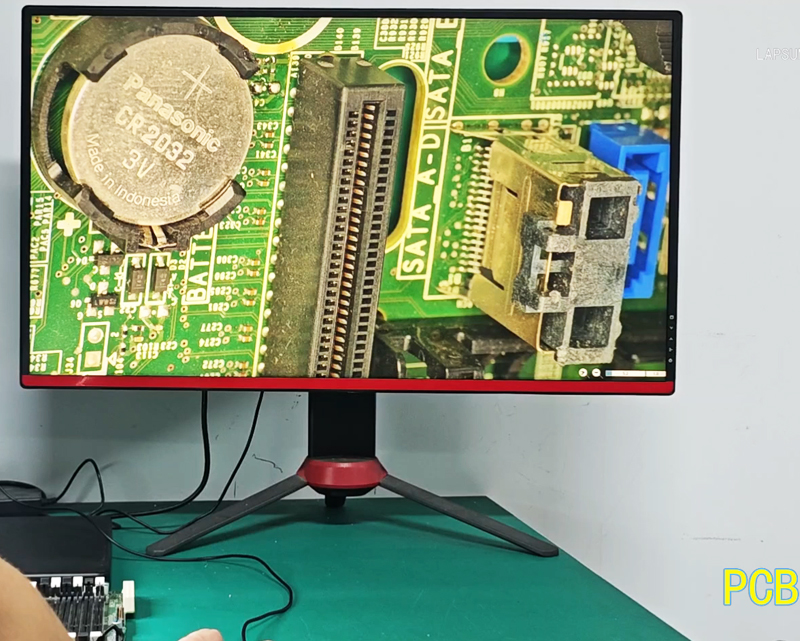

with Measuring Function For PCB SMD SMT Repair, Cultural relics collection




Feature:

  • 10CM - infinity Working distance
  • 4K FULL HD high speed camera with 1X - 28X optics zoom lens
  • Electric zoom, The magnification can be adjusted through a mouse or other I/O device
  • UI design menu, easy to control by mouse
  • Autofocus, when observation Objects of different heights, you do not need adjust the lens's Working distance
  • When you adjust the Camera's Magnification, you do not need adjust the lens's Working distance

















Specification:

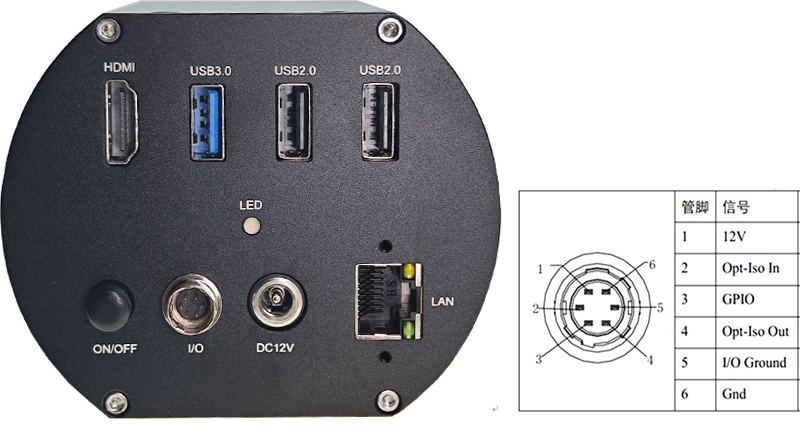

  • 4K HDMI / USB / LAN POE video output

  • Working distance: 10CM - infinity

  • High performance and fast response video

  • H.264 codec

  • 4K/1080P switch adaptively

  • SONY imx415 Sensor, senzor size:1/2.8"

  • Pixel(μm) : 1.45x1.45

  • Resolution: 4K Ultra HD (8mp 3840x2160)

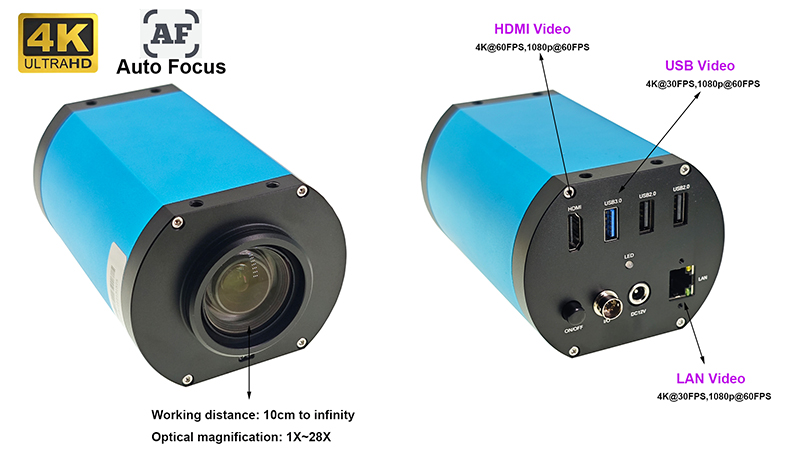

  • Preview frame rate：
    HDMI :
    4K@60fps,1080p@60fps
    LAN：
    30fps@3840*2160(MJPEG)
    60fps@1920*1080(MJPEG)
    30fps@3840*2160(H264)
    60fps@1920*1080(H264)
    USB:
    30fps@3840*2160(MJPEG)
    60fps@1920*1080(MJPEG)
    15fps@3840*2160(NV12)
    60fps@1920*1080(NV12)

  • Exposure : 1/50s(1/60s)～1/10000s

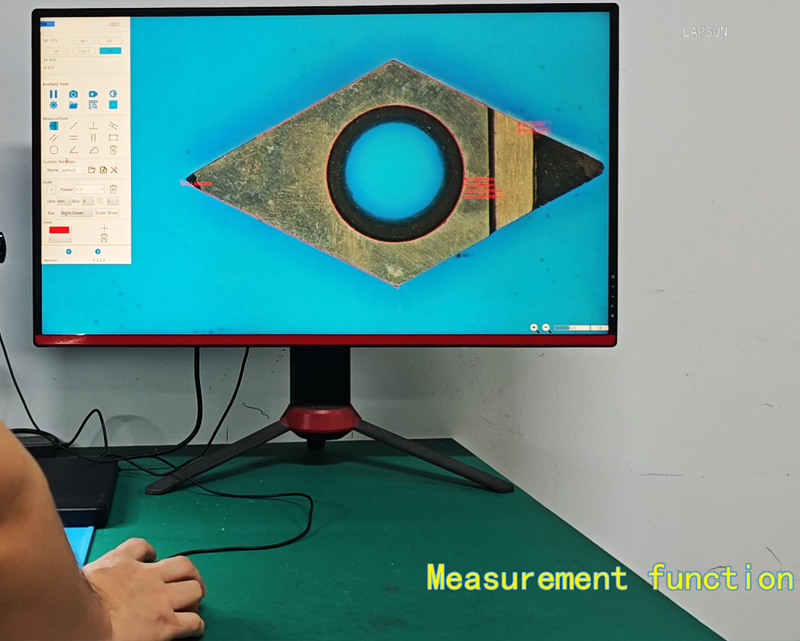

  • Real time measurement

  • Support U disk storage

  • Method of Operation : Mouse

  • Power DC : DC12V

  • Video Output method : HDMI, LAN POE

  • White Balance : Auto / Manual / One-push control

  • Exposure : Auto / Manual

  • Scanning method : Line by line scanning

  • Operating Temperature : 0℃～50℃

  • Magnification / Zoom : Support

  • Menu language : Chinese/English/Japanese

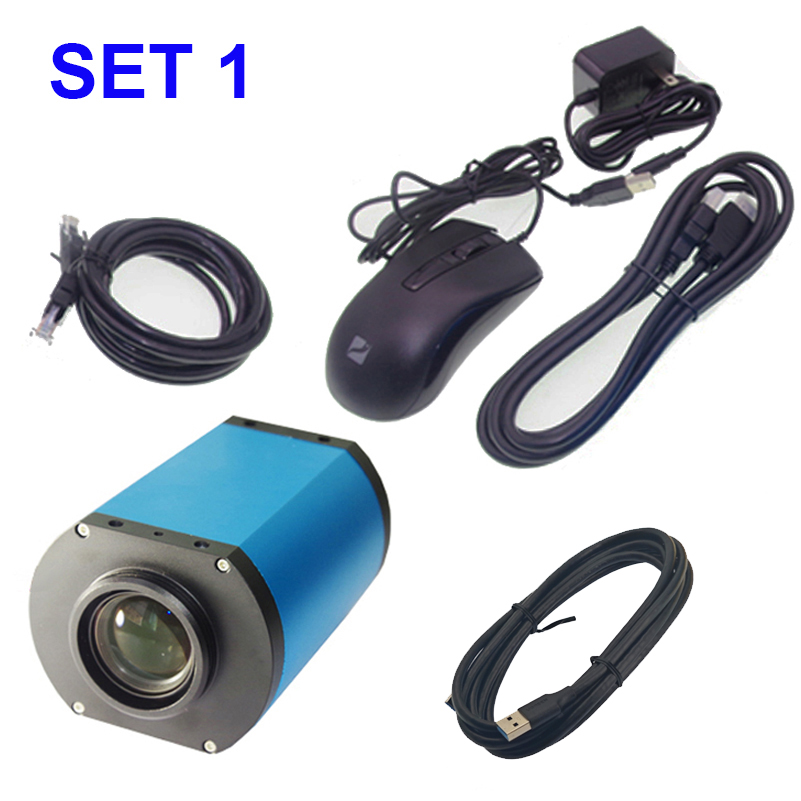

SET 1 Package including:

  • 1 x Microscope Camera
  • 1 x Power supply
  • 1 x HDMI Cable
  • 1 x LAN Cable
  • 1 x USB Cable
  • 1 x USB Mouse

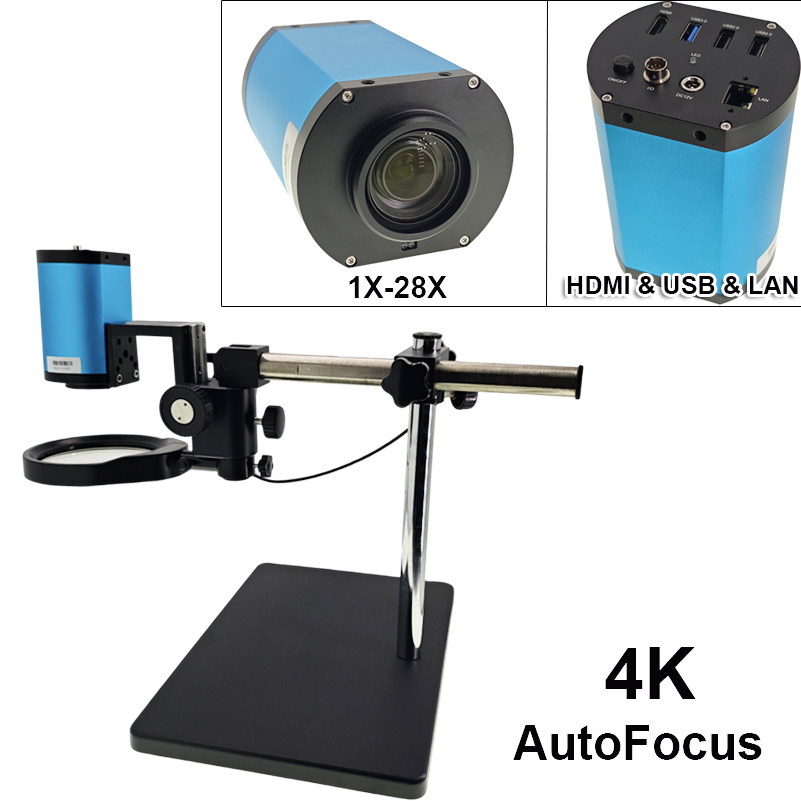

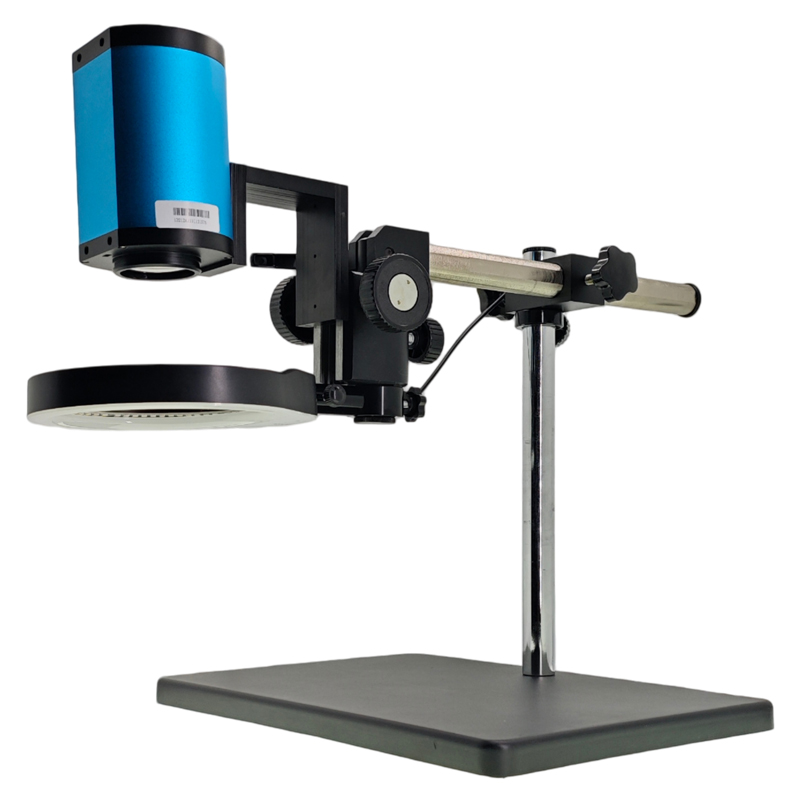

  • 1 x Camera Big Stand

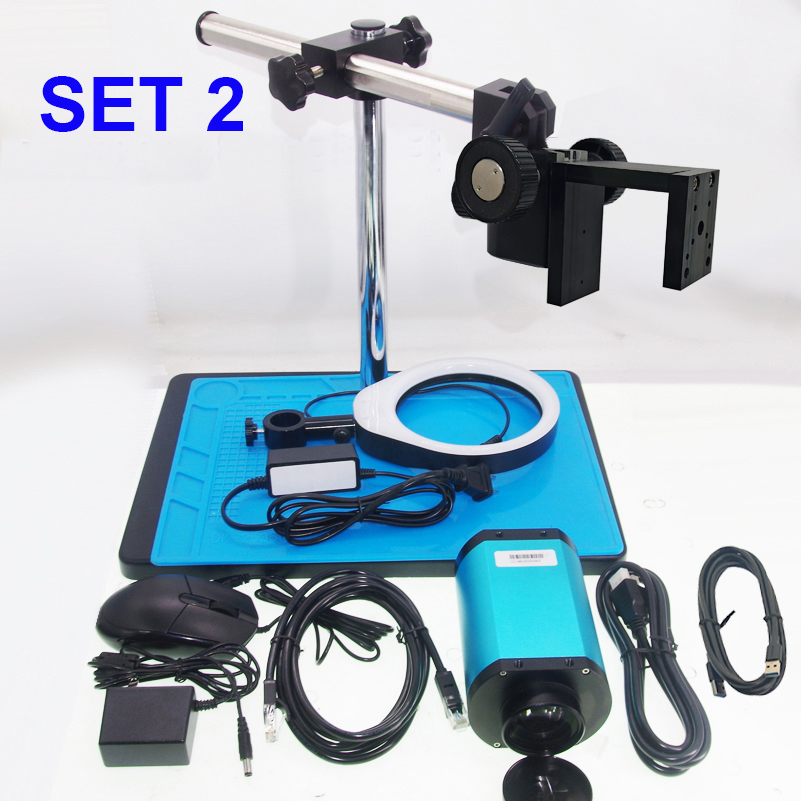

SET 2 Package including:

  • 1 x Microscope Camera
  • 1 x Power supply
  • 1 x HDMI Cable
  • 1 x LAN Cable
  • 1 x USB Cable
  • 1 x USB Mouse
  • 1 x Universal microscope bracket
  • 1 x 40LED Rign Light
  • 1 x Heat Insulation Silicone Pad
Instructions:


    9

    • 1. Item will be shipped within 3 days after payment received
    • 2. Tax: we are not responsible for the import tax and customs charges at destination country
    • 3. Usually we ship the item by standard shipping if the item weight is less than 2KG, but if the item has high value and weight is over 2KG, we will ship by DHL / UPS / FedEx express shipping, usually the shipping time is about 5-10 days to your country(depends on the customs clearance schedule).
    • 4. Important! International shipment not under our control, sometimes delayed please contact us let me know. We will check for you. Over 30 days have not arrive after we checked will be replacement or give other solution. Thank you~

    11

    • 1. The warranty period is one year
    • 2. If you are unhappy with your purchase, please contact us within 30 days of receipt and let us know why.
    • 3. We would like to assure the all products can be arrived on time and in good condtion, but some quality problem caused by such as manufacture, material or bad quality under normal use. Defective/ Wrong Items - within the warranty period---please contact with us directly, a picture or video will be better understand the probem, so that we can provide the best suitable solution.






    Magnification Range Only 4K Camera Body
    Microscope Structure Upright
    Brand LAPSUN
    Unit Type Unit
    Microscope Type Stereo Microscope
    Viewer Monocular
    Country/Region Of Manufacture China
    Unit Quantity 1 Unit
